Interface Sentinel

Interface Sentinel is a small native macOS menu-bar utility that continuously keeps every network interface down except the interfaces you explicitly allow. The menu-bar application appears as NetCtl and manages a root-owned LaunchDaemon that enforces the allowlist at a configurable interval.

The project is deliberately narrow:

Interface Sentinel controls whether an interface may remain up. It does not inspect, filter, classify, or attribute traffic carried by that interface.

macOS creates network interfaces for physical hardware, tunnels, peer-to-peer networking, virtualization, sharing services, and other system features. Interface Sentinel applies a simple host-level policy to those interfaces:

Enumerate every interface -> compare it with the allowlist -> bring every non-allowed interface down -> wait -> repeat

When enforcement is enabled, Interface Sentinel installs and starts a root-owned LaunchDaemon named com.netctl.netenforce. Its helper enumerates interfaces with ifconfig -l and runs:

/sbin/ifconfig "<interface>" down

for each interface absent from the configured allowlist.

The default source configuration is:

ALLOWLIST="en0 utun4 lo0"
INTERVAL=15

These values are examples, not a safe universal configuration. Hardware-port names vary between Macs, and utun numbers can change as VPNs and Apple networking services start and stop.

• Native Swift and Cocoa menu-bar application for macOS 13 or later.
• Continuous interface allowlist enforcement at a configurable 1–3600 second interval.
• Root-owned LaunchDaemon for enforcement independent of the signed-in user session.
• Administrator authorization through the native macOS prompt when privileged files or service state must change.
• Menu-bar indicator for the helper's observed running state.
• Settings UI for space- or comma-separated interface names.
• Duplicate interface removal and input validation before privileged configuration writes.
• Optional per-user LaunchAgent to start the menu-bar application at sign-in.
• No third-party runtime dependencies, packet capture, network upload, telemetry, or cloud service.
• Complete verification, recovery, update, troubleshooting, and uninstall procedures below.

The screenshots were captured from the repository's locally built Cocoa application in a documentation-only launch with enforcement disabled. They use the source defaults and contain no private network capture, host inventory, credential, or device identifier.

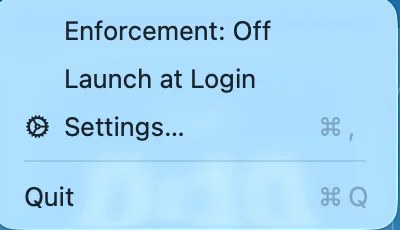

The menu exposes four focused actions:

• Enforcement: On/Off installs, starts, or stops the privileged helper after administrator authorization.
• Launch at Login creates or removes the per-user LaunchAgent.
• Settings… edits the allowlist and enforcement interval.
• Quit exits only the menu-bar application; it does not stop an active system LaunchDaemon.

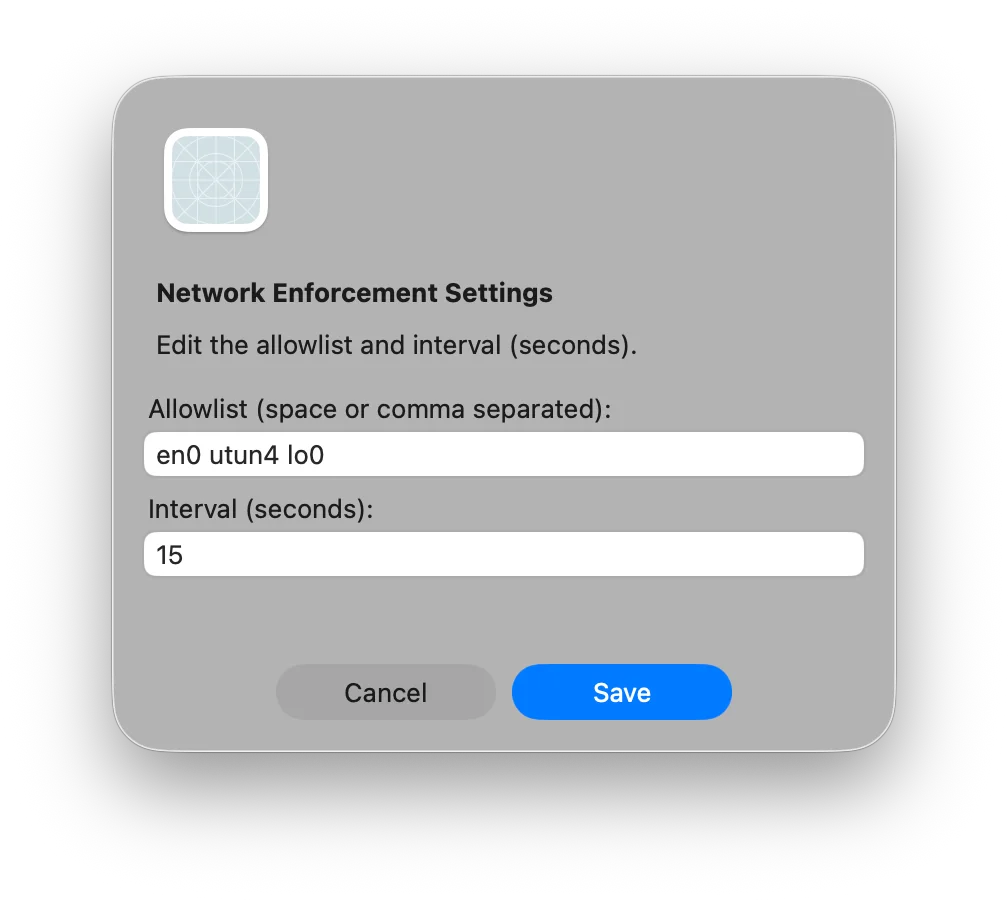

The sample values in the screenshot are the source defaults. Do not copy them without first identifying the required interfaces on the target Mac.

User session
  /Applications/MenuBarNetToggle.app
  ~/Library/LaunchAgents/com.netctl.MenuBarNetToggle.plist   (optional)

System session
  /Library/LaunchDaemons/com.netctl.netenforce.plist
  /Library/Application Support/MenuBarNetToggle/enforce.sh
  /Library/Application Support/MenuBarNetToggle/config.conf
  /var/run/com.netctl.netenforce.pid
  /var/log/com.netctl.netenforce.out
  /var/log/com.netctl.netenforce.err

The two process lifecycles are intentionally independent:

• Launch at Login can be enabled while enforcement is off.
• Enforcement can remain active after the menu-bar application quits.
• Logging out stops the user application, but the system LaunchDaemon can remain active.
• Reopening the menu-bar application reconnects the UI to the helper's observed state.

• Enumerates all interface names returned by /sbin/ifconfig -l.
• Compares each exact interface name with the configured allowlist.
• Administratively brings non-allowed interfaces down.
• Repeats enforcement at the configured interval.
• Reloads the configuration file on each pass, so saved changes are used by the running helper without rebuilding the app.
• Keeps the helper alive through launchd when enforcement is enabled.
• Validates UI input before writing privileged configuration:
  • allowlist cannot be empty;
  • names can contain letters, numbers, ., _, :, and -;
  • duplicate names are removed;
  • interval must be between 1 and 3600 seconds.
• Displays NetCtl ○ when the helper is not observed running and NetCtl ● when its recorded PID is live.

• It does not inspect, capture, decrypt, proxy, or export packets.
• It does not identify which process created or uses an interface.
• It does not determine whether an interface is malicious.
• It does not restrict traffic on an allowed interface.
• It does not configure the macOS Application Firewall, Packet Filter (pf), Network Extension policies, DNS, routes, or proxies.
• It does not automatically discover a safe allowlist.
• It does not automatically follow changing utun numbers.
• It does not automatically bring an interface back up after enforcement stops.
• It does not stop the root helper when the menu-bar application quits.
• It does not include an updater, Developer ID signature, notarization ticket, or universal binary.
• It does not send interface information or telemetry to a remote service.

• macOS 13 Ventura or later.
• Apple silicon (arm64) or Intel (x86_64) Mac; the build targets the architecture of the Mac performing the build.
• Xcode or Xcode Command Line Tools with swiftc and the macOS SDK.
• An administrator account to enable enforcement or change the privileged configuration.
• Local interactive access during initial configuration and testing.

Check the required developer tools:

xcode-select -p
xcrun --find swiftc
xcrun --sdk macosx --show-sdk-path
swiftc --version

If the Command Line Tools are missing, request Apple's installer:

xcode-select --install

git clone https://github.com/hideouts-io/Interface-Sentinel.git
cd Interface-Sentinel
./build.sh
ditto build/MenuBarNetToggle.app /Applications/MenuBarNetToggle.app
open /Applications/MenuBarNetToggle.app

Then:

1. Open NetCtl → Settings….
2. Replace the example allowlist with interface names verified on the current Mac.
3. Save the configuration and approve the native administrator prompt.
4. Select Enforcement: Off to enable enforcement.
5. Immediately confirm that required local and network access still works.

git clone https://github.com/hideouts-io/Interface-Sentinel.git
cd Interface-Sentinel

Interface Sentinel intentionally performs root-level network-interface changes. Review the complete source before running it:

less main.swift
less build.sh
plutil -p Info.plist

The enforcement script and LaunchDaemon are generated from main.swift only after enforcement is enabled.

./build.sh

The build script:

1. Resolves the active macOS SDK.
2. Compiles main.swift with Apple's Swift compiler and Cocoa framework.
3. Creates build/MenuBarNetToggle.app.
4. Applies a local ad-hoc signature.
5. Performs strict code-signature verification.

The generated app targets macOS 13 or later and the current Mac's architecture. It is not universal, Developer ID signed, or notarized for third-party distribution.

codesign --verify --deep --strict --verbose=2 build/MenuBarNetToggle.app
codesign -d --verbose=4 build/MenuBarNetToggle.app
file build/MenuBarNetToggle.app/Contents/MacOS/MenuBarNetToggle
plutil -lint build/MenuBarNetToggle.app/Contents/Info.plist

Quit any older copy first. The public project name is Interface Sentinel, while the current bundle and executable retain the internal name MenuBarNetToggle.

ditto build/MenuBarNetToggle.app /Applications/MenuBarNetToggle.app

If the current account cannot write to /Applications, elevate only the copy operation:

sudo ditto build/MenuBarNetToggle.app /Applications/MenuBarNetToggle.app

Verify the installed copy:

codesign --verify --deep --strict --verbose=2 /Applications/MenuBarNetToggle.app

open /Applications/MenuBarNetToggle.app

Look for NetCtl ○ or NetCtl ● in the menu bar. Interface Sentinel is an agent-style application (LSUIElement) and does not normally appear in the Dock.

Do not enable enforcement until the allowlist has been reviewed for this Mac.

Use read-only commands to identify interface names and their current roles:

ifconfig -l
networksetup -listallhardwareports
route -n get default
scutil --nwi

For a more detailed read-only view:

for interface_name in $(ifconfig -l); do
  echo "===== $interface_name ====="
  ifconfig "$interface_name"
done

Review the output locally. A complete interface inventory can reveal hardware, VPN, virtualization, and network-service details that may not belong in a public issue or screenshot.

Interface names are only identifiers. Their presence does not prove malicious activity, and a familiar name does not prove safe use.

Open NetCtl → Settings… and provide:

• Allowlist: interface names separated by spaces or commas.
• Interval: an integer from 1 to 3600 seconds.

Saving requires administrator authorization because the configuration is written to:

/Library/Application Support/MenuBarNetToggle/config.conf

The file is set to root:wheel ownership with mode 0644. The running helper reads it again on every enforcement pass.

• A short interval reduces the time an unexpected interface may remain up but increases command activity and reduces recovery time after a mistake.
• A longer interval reduces enforcement frequency but leaves a wider window before a new interface is brought down.
• The default is 15 seconds.

The interval is not a guarantee of exact timing; launchd scheduling, system load, and the helper loop can affect when a pass completes.

The UI refreshes periodically and whenever the menu opens.

1. Confirm local recovery access.
2. Open NetCtl.
3. Select Enforcement: Off.
4. Review and approve the macOS administrator prompt.
5. Confirm the menu changes to Enforcement: On and NetCtl ●.
6. Immediately test required Wi-Fi, Ethernet, VPN, local-service, sharing, and administrative workflows.

On first enable, the app creates or rewrites the root-owned configuration, helper script, and LaunchDaemon, then bootstraps the daemon in the system launchd domain.

1. Open NetCtl.
2. Select Enforcement: On.
3. Approve the administrator prompt.
4. Confirm NetCtl ○ and verify the system service is absent.

Disabling enforcement prevents future passes. It does not restore interfaces already brought down.

Select NetCtl → Launch at Login to create:

~/Library/LaunchAgents/com.netctl.MenuBarNetToggle.plist

The LaunchAgent records the exact path of the running application. Install the app in /Applications before enabling this option so the path remains stable.

Launch at Login starts the user interface. It is separate from system enforcement and does not determine whether the root LaunchDaemon continues running.

Quit terminates only the menu-bar application. It does not unload com.netctl.netenforce or restore disabled interfaces.

pgrep -alf MenuBarNetToggle

If Launch at Login is enabled, inspect its user service:

launchctl print "gui/$(id -u)/com.netctl.MenuBarNetToggle"

An error is expected when the LaunchAgent is disabled or not loaded.

launchctl print system/com.netctl.netenforce

Inspect the active configuration and PID record:

cat "/Library/Application Support/MenuBarNetToggle/config.conf"
cat /var/run/com.netctl.netenforce.pid

ls -la "/Library/Application Support/MenuBarNetToggle"
ls -l /Library/LaunchDaemons/com.netctl.netenforce.plist

Expected privileged files are owned by root:wheel. The helper script is executable; the configuration and LaunchDaemon property list are not.

for interface_name in $(ifconfig -l); do
  ifconfig "$interface_name" | sed -n '1p;/status:/p'
done

An interface without the UP flag is administratively down or otherwise inactive. Interface state alone does not prove Interface Sentinel caused it; correlate the state with the LaunchDaemon, configuration, PID, and timestamps.

The helper writes standard output and standard error to:

/var/log/com.netctl.netenforce.out
/var/log/com.netctl.netenforce.err

Inspect recent entries without changing the files:

sudo tail -n 100 /var/log/com.netctl.netenforce.out
sudo tail -n 100 /var/log/com.netctl.netenforce.err

Empty logs are normal when helper commands complete without producing output.

Use NetCtl → Enforcement: On to turn enforcement off, or unload the exact system service from Terminal:

sudo launchctl bootout system/com.netctl.netenforce

Confirm it is gone:

launchctl print system/com.netctl.netenforce

The expected result is an error stating that the service could not be found.

The safest general recovery is macOS System Settings → Network, where the required service can be reconnected using its human-readable name.

If the exact interface has been positively identified, bring only that interface up:

sudo ifconfig en0 up

Replace en0 with the verified interface name for the current Mac. If service state remains inconsistent, toggle the affected network service in System Settings or restart the Mac after confirming the helper is unloaded.

If enforcement disabled the only remote-administration interface, recovery requires a separate path such as local keyboard/display access, another already-working management channel, or a planned restart with the helper removed or unloaded. Do not rely on the same network path that the policy is capable of disabling.

1. Turn enforcement off if interface changes should pause during the update.
2. Turn Launch at Login off if the existing LaunchAgent points to another app location.
3. Quit Interface Sentinel.
4. Pull, rebuild, and verify.
5. Replace the installed application.
6. Reopen the app and re-enable only the intended settings.

git pull --ff-only
./build.sh
codesign --verify --deep --strict --verbose=2 build/MenuBarNetToggle.app
sudo ditto build/MenuBarNetToggle.app /Applications/MenuBarNetToggle.app
open /Applications/MenuBarNetToggle.app

Replacing the .app does not automatically remove the existing root helper or configuration. Enabling enforcement from the rebuilt application rewrites those privileged files using the current configuration.

Deleting the .app is not sufficient after enforcement or Launch at Login has been enabled.

Turn Enforcement off, turn Launch at Login off, and choose Quit.

if launchctl print "gui/$(id -u)/com.netctl.MenuBarNetToggle" >/dev/null 2>&1; then
  launchctl bootout "gui/$(id -u)/com.netctl.MenuBarNetToggle"
fi
rm -f "$HOME/Library/LaunchAgents/com.netctl.MenuBarNetToggle.plist"

if launchctl print system/com.netctl.netenforce >/dev/null 2>&1; then
  sudo launchctl bootout system/com.netctl.netenforce
fi
sudo rm -f /Library/LaunchDaemons/com.netctl.netenforce.plist
sudo rm -f /var/run/com.netctl.netenforce.pid
sudo rm -f /var/log/com.netctl.netenforce.out
sudo rm -f /var/log/com.netctl.netenforce.err
sudo rm -rf "/Library/Application Support/MenuBarNetToggle"

These paths are created by Interface Sentinel. Removing the application-support directory permanently deletes its configuration.

sudo rm -rf /Applications/MenuBarNetToggle.app

If the source checkout is no longer needed, its generated build directory can be removed separately from inside that checkout:

rm -rf build

pgrep -alf MenuBarNetToggle
launchctl print system/com.netctl.netenforce
test ! -e "$HOME/Library/LaunchAgents/com.netctl.MenuBarNetToggle.plist"
test ! -e /Library/LaunchDaemons/com.netctl.netenforce.plist
test ! -e "/Library/Application Support/MenuBarNetToggle"

The process search should return no application process, launchctl print should report that the service is absent, and the test commands should produce no output and exit successfully.

pgrep -alf MenuBarNetToggle
open /Applications/MenuBarNetToggle.app

If the process exits, run the executable from Terminal to observe immediate diagnostics:

/Applications/MenuBarNetToggle.app/Contents/MacOS/MenuBarNetToggle

Cancellation produces AppleScript authorization error -128. No requested privileged change is completed. Reopen the menu and repeat the operation only when ready.

This is expected. The system LaunchDaemon is independent of the menu-bar application. Reopen the app and disable enforcement, or unload the exact service:

sudo launchctl bootout system/com.netctl.netenforce

Disable enforcement first. Identify the VPN's current tunnel interface with scutil --nwi and the VPN application's own diagnostics. Add only the confirmed interface before re-enabling enforcement. Do not assume a previously observed utun number is still correct.

Disable enforcement and verify whether the workflow requires awdl0, llw0, bridge0, ap1, or another dynamically created interface. Enabling those features may create more than one interface.

Stopping the helper prevents future enforcement passes but does not reverse previous ifconfig ... down commands. Reconnect the service in System Settings or bring the verified interface up manually after confirming the helper is unloaded.

The helper reads the configuration on each pass. Wait for the configured interval, then inspect the config file and helper state. Do not repeatedly enable enforcement while diagnosing.

xcode-select -p
xcrun --sdk macosx --show-sdk-path
xcrun --find swiftc
swiftc --version

If Xcode was moved or replaced, select the installation actually present on the Mac:

sudo xcode-select --switch /Applications/Xcode.app/Contents/Developer

That is expected when the relevant LaunchAgent or LaunchDaemon is disabled. If the UI claims enforcement is active, inspect the PID file, running process, and daemon logs together rather than relying on a single signal.

• The menu-bar application runs as the signed-in user.
• Privileged operations use a native macOS administrator authorization prompt.
• The LaunchDaemon and helper run as root because arbitrary interface state changes require elevated privileges.
• The helper, configuration, and daemon property list are written with root:wheel ownership.
• The configuration is sourced by a root shell. Do not make it writable by untrusted users or processes.

build.sh applies a local ad-hoc signature and verifies bundle integrity. Ad-hoc signing does not establish publisher identity, Developer ID trust, notarization, or App Store review.

The PID file is a lightweight liveness mechanism. A live PID is not proof that the process is the expected helper, that the latest enforcement pass succeeded, or that all non-allowed interfaces remain down. Use launchd state, process details, configuration, logs, and interface state together when assurance matters.

Interface Sentinel has no telemetry or cloud integration and does not capture packet contents. Its local configuration and diagnostic output can still expose:

• interface names and installed network capabilities;
• VPN or tunnel presence;
• virtualization or sharing features;
• application paths in the LaunchAgent;
• usernames contained in home-directory paths;
• host-specific process IDs and timestamps.

Before opening a public issue, redact private paths, usernames, device identifiers, IP addresses, endpoint inventories, VPN details, and unrelated log content. Do not publish a complete ifconfig, scutil --nwi, LaunchAgent, or LaunchDaemon dump without reviewing it first.

• The project uses AppleScript authorization and generated shell/launchd files instead of a hardened SMAppService or XPC privileged-helper architecture.
• The stop and status model is intentionally lightweight.
• An allowlist entry is an exact interface-name match, not a stable identity tied to hardware or a service.
• Dynamic interfaces can appear under different names after reconnects or restarts.
• An attacker or root process with sufficient privileges can modify interface state outside this application's control.
• Interface enforcement is not a substitute for firewall policy, endpoint security, network monitoring, or incident-response investigation.

Interface-Sentinel/
├── .gitignore
├── Info.plist
├── README.md
├── assets/
│   ├── AppIcon.icns
│   ├── AppIcon.svg
│   ├── logo.png
│   └── logo.svg
├── build.sh
├── evidence/
│   ├── interface-sentinel-menu.png
│   └── interface-sentinel-settings.png
└── main.swift

The project has no third-party runtime dependencies or package manager.

Build and validate the repository:

./build.sh
plutil -lint Info.plist
plutil -lint build/MenuBarNetToggle.app/Contents/Info.plist
codesign --verify --deep --strict --verbose=2 build/MenuBarNetToggle.app
file build/MenuBarNetToggle.app/Contents/MacOS/MenuBarNetToggle
git diff --check

Changes affecting allowlist validation, launchd domains, privileged paths, quoting, file ownership, helper lifecycle, or uninstall behavior require real macOS integration testing. A compile-only check cannot validate launchd and interface behavior.

Test enforcement on a non-critical Mac with direct local access. Do not test over the only network path to the system.

Use Interface Sentinel only on Macs you own or are explicitly authorized to administer. Bringing interfaces down can interrupt users, monitoring, backups, remote management, business applications, and safety-critical communications.

Treat an unexpected interface as an investigation lead, not a conclusion. Establish its source and purpose with corroborating system, process, configuration, and network evidence before labeling it unauthorized or malicious.

Interface Sentinel is released under the MIT License.
