Volume Mount Troubleshooter

Volume Mount Troubleshooter turns the normal macOS storage-diagnostic workflow into a small native GUI. The application discovers external physical disks through diskutil, resolves APFS containers into user-facing volumes, and presents a selector rather than issuing a mount request against every connected disk.

When an explicit action is pressed, the app displays each command as it runs and preserves:

• the exact executable and arguments;
• combined command output;
• the process exit status;
• the selected physical disk and volume identifiers;
• the selected action;
• encryption and locked state;
• overall SMART status, optional detailed health counters, and USB link information;
• mount-point and writable-state verification;
• recent Disk Arbitration errors and faults; and
• a bounded explanation tied to the observed error text.

The app uses only Apple frameworks and fixed Apple command-line tools for its required functionality. It has no required package-manager dependencies and makes no network requests. If an existing smartctl installation is found at a known fixed path, the app can read additional health counters without installing or updating anything.

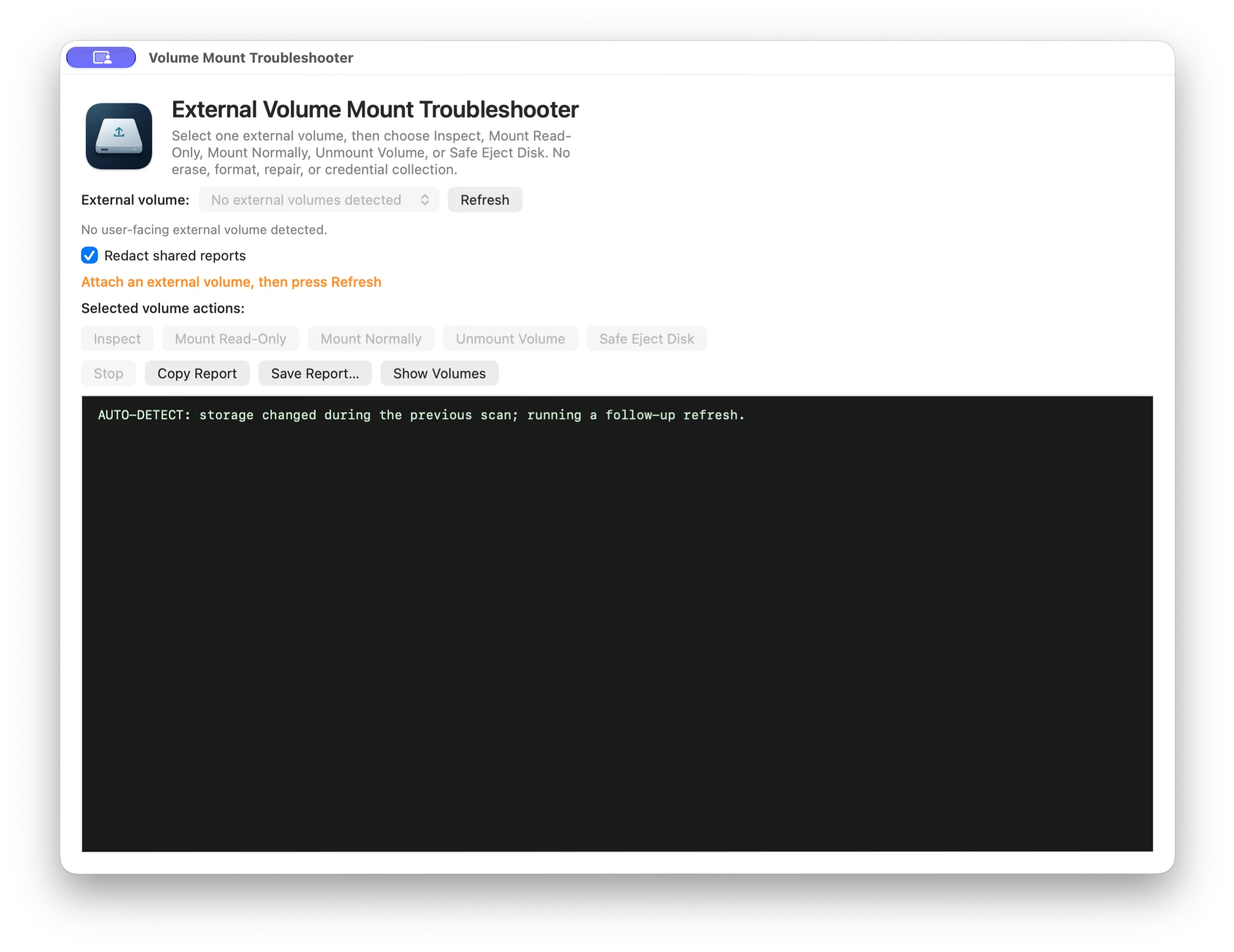

The main window keeps selection, explicit actions, privacy controls, current status, and the live command console in one view.

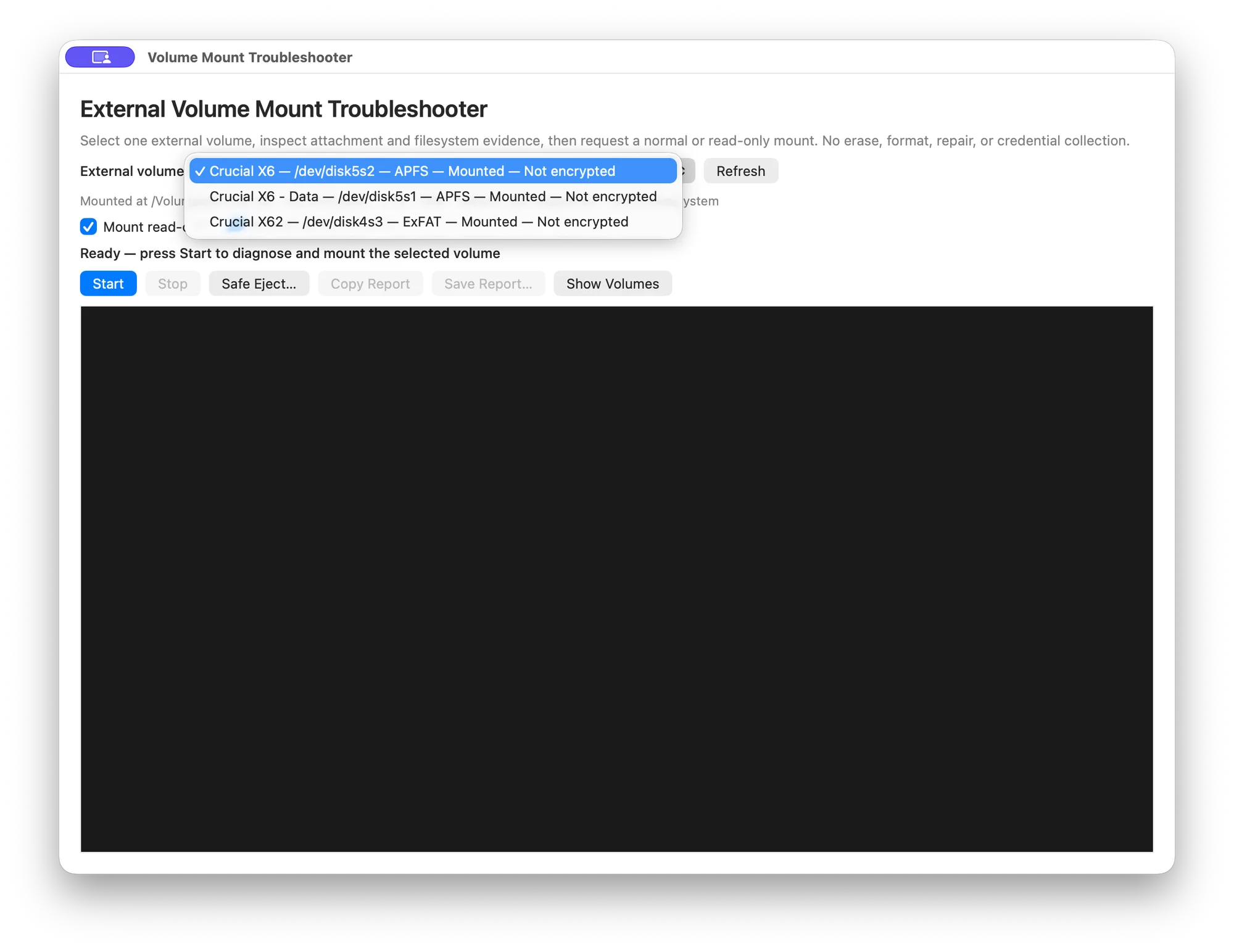

The selector shows one entry per user-facing volume, including the current device identifier, filesystem, mount state, and encryption state. Device identifiers are transient and are rediscovered on refresh.

Volume Mount Troubleshooter currently provides:

• a selector containing one entry per user-facing external volume;
• typed parsing of diskutil and APFS property-list output;
• per-disk failure isolation that preserves exact errors while retaining usable volumes from other disks;
• exclusion of APFS Preboot, Recovery, VM, Update, xART, and Hardware helper volumes;
• explicit Inspect, Mount Read-Only, Mount Normally, Unmount Volume, and Safe Eject Disk controls;
• a confirmation boundary before unmounting a writable volume for read-only remounting;
• APFS/FileVault encryption and locked-state detection without password handling;
• bounded unlock-transition retries with visible progress and hardware-path matching;
• Finder-only reveal for mounted vendor unlocker volumes without launching their applications;
• SMART status plus optional temperature, media-error, unsafe-shutdown, power-on-hour, and percentage-used reporting;
• USB negotiated-link-rate extraction from IOKit when available;
• recent diskarbitrationd error and fault collection;
• native Disk Arbitration notification handling for attached and disconnected devices, including immediate stale-selector removal;
• exact post-mount verification of mount point and writable state;
• guided explanations for common mount and eject failures;
• confirmed whole-disk Safe Eject;
• privacy-redacted clipboard and saved reports; and
• a terminal-style live console with Stop, Copy Report, Save Report, and Show Volumes controls.

The app separates inspection, mounting, and whole-device ejection.

The application never constructs or runs repair, erase, partition, format, force-eject, unlock, or sudo commands. A failed mount remains a failure with its original output visible; the app does not silently switch to a different mode.

DiskScanner accepts only typed property-list structures with required identifiers. Additive unrelated fields are ignored, while missing required fields or malformed output produce explicit errors.

• macOS 13 or newer;
• an Apple Silicon (arm64) or Intel (x86_64) Mac;
• Xcode or the Xcode command-line tools for building;
• a standard signed-in user account; and
• an external storage device visible to macOS.

No Homebrew packages, third-party frameworks, network services, kernel extensions, launch agents, launch daemons, or administrator privileges are required. The optional expanded SMART display uses an existing smartctl executable when available; it is not required for volume discovery, inspection, mounting, unmounting, or ejection.

Clone and build from source:

git clone https://github.com/hideouts-io/VolumeMountTroubleshooter.git
cd VolumeMountTroubleshooter
chmod +x build.sh
./build.sh
open "build/Volume Mount Troubleshooter.app"

The build script:

1. creates the .app bundle under build/;
2. compiles separate arm64 and x86_64 slices for macOS 13+;
3. combines the slices into one universal executable with Apple lipo;
4. verifies that both architectures are present;
5. links AppKit and Disk Arbitration;
6. runs the built-in parser and privacy-redaction self-test;
7. applies an ad-hoc code signature to the completed universal bundle; and
8. verifies the bundle with strict code-signature validation.

The generated application is:

build/Volume Mount Troubleshooter.app

The historical v0.2 macos-arm64 release asset remains Apple-Silicon-only. The v0.3.0 release is universal when its filename ends in macOS-universal.zip and its checksum matches the accompanying SHA256SUMS.txt file.

1. Attach the external disk.
2. Wait for the selector to refresh, or press Refresh.
3. Choose one user-facing volume.
4. Review its current mount, encryption, size, transport, SMART, and APFS-role summary.
5. Press exactly one action: Inspect, Mount Read-Only, Mount Normally, Unmount Volume, or Safe Eject Disk.
6. Review the exact commands, output, exit statuses, verification result, and any guided explanation.
7. Use Show Volumes to open /Volumes in Finder.
8. Use Copy Report or Save Report… to preserve the result.

Inspect is the Return-key default and never mounts or unmounts the volume. The Stop button terminates the active command and cancels the remaining workflow. It does not continue to a state-changing command after cancellation.

Discovery begins with structured external-physical-disk inventory:

/usr/sbin/diskutil list -plist external physical

For each external physical disk, the app reads typed disk and partition information. If a partition is an APFS physical store, its synthesized container and volumes are resolved using:

/usr/sbin/diskutil apfs list -plist /dev/diskN

Each physical disk is scanned within its own failure boundary. If diskutil info, partition decoding, or APFS discovery fails for one disk, the console records that disk identifier and the exact command error, exit status, and output. The selector still displays usable volumes discovered on other physical disks. Cancellation still stops the complete inventory, and failure of the initial external-disk list remains fatal because no reliable per-disk inventory exists in that case.

Only user-facing filesystems are selectable. APFS infrastructure roles such as Preboot, Recovery, VM, Update, xART, and Hardware are intentionally excluded. Microsoft Reserved partitions and partitions without a recognized filesystem are also excluded.

Disk identifiers are rediscovered on every refresh. The app does not assume identifiers such as disk4s3 remain stable after reconnecting or restarting.

The app registers native Disk Arbitration appeared and disappeared callbacks. When macOS publishes a disk object, the appeared callback schedules a fresh typed inventory after a short debounce interval. When a disk disappears, the app immediately removes that device and its volumes from the in-memory snapshot and selector, clears a stale selection, and disables the action controls until the user deliberately selects another available volume. A follow-up inventory then reconciles the complete device list.

If a disk disappears while an inventory is already running, the app cancels and invalidates that inventory so its older result cannot restore the removed selector entry. It then performs one follow-up refresh. Storage inventory commands time out after 15 seconds so a vendor unlock transition cannot leave the selector waiting indefinitely.

When a virtual unlocker is present without its matching data disk, the app retries discovery five times at two-second intervals. The visible progression advances from Unlocker detected through Waiting for data disk to the discovered volume name, such as Extreme SSD ready. Association uses the shared macOS device-tree path rather than vendor names or transient diskN identifiers.

Automatic detection refreshes the selector. It never automatically mounts, unmounts, unlocks, repairs, or ejects a device.

Mount Normally is enabled only for an unlocked, unmounted selected volume and runs:

/usr/sbin/diskutil mount /dev/diskNsN

For an unlocked, unmounted selected volume, Mount Read-Only runs:

/usr/sbin/diskutil mount readOnly /dev/diskNsN

If the selected volume is already mounted writable, macOS cannot convert that live mount merely by repeating mount readOnly. The app displays a warning and, only after confirmation, runs:

/usr/sbin/diskutil unmount /dev/diskNsN
/usr/sbin/diskutil mount readOnly /dev/diskNsN

After either mode, the app decodes fresh diskutil info -plist output. Success requires a non-empty mount point. Read-only success additionally requires macOS to report that the mounted volume is not writable.

Unmount Volume is enabled only while the selected volume is mounted and targets that volume alone:

/usr/sbin/diskutil unmount /dev/diskNsN

Read-only is a requested and verified mount property, not a guarantee that the underlying device received no writes before the app started. Hardware, firmware, filesystem checks performed elsewhere, and earlier mounts remain outside this app's control.

The scanner reads APFS and diskutil encryption metadata, including:

• APFS encryption state;
• FileVault state;
• locked or unlocked state; and
• the current mount point.

If the selected volume is encrypted and locked, the app stops before mounting and directs the user to Finder or Disk Utility. It does not invoke diskutil apfs unlockVolume, display a custom password field, read standard input, inspect the keychain, or store credentials.

Some hardware-encrypted external drives first expose a small read-only virtual CD containing a vendor unlocker. The app excludes that helper media from the volume selector, explains that it is not the data volume, and waits for Disk Arbitration to publish the full-size unlocked disk. Show Unlocker in Finder reveals only the mounted helper directory; it does not open the vendor application, request credentials, or inspect their contents. Once the real filesystem appears, the existing normal or read-only selected-volume mount workflow applies.

An encrypted and unlocked volume may be mounted normally or read-only like any other selected volume.

The app asks System Profiler for USB and Thunderbolt/USB4 attachment data:

/usr/sbin/system_profiler \
  SPUSBDataType \
  SPThunderboltDataType \
  -detailLevel mini

This is attachment-layer evidence only. Some USB storage paths may be present in diskutil and IOKit while absent from these System Profiler data types.

SMART status comes from diskutil info for the selected volume's external whole disk. Many USB-to-storage bridges return Not Supported. The app reports that limitation rather than converting it into a passing health result.

For expanded health data, the app checks fixed locations for an existing smartctl executable and, when found, runs the read-only display command:

/opt/homebrew/sbin/smartctl --all --json /dev/diskN

The exact executable path may instead be /usr/local/sbin, /usr/local/bin, /opt/local/sbin, or a future bundled resource. The app does not search arbitrary PATH entries, install smartmontools, enable SMART, start tests, or change device settings. The --all and --json options request display-only health information in structured form.

The raw JSON is decoded but is not copied wholesale into the console because it can contain device model and serial identifiers. The app displays only the recognized health counters, collector path, and exit status; exported reports apply the existing privacy redaction rules.

When the device and bridge expose them, the app displays:

• current temperature in degrees Celsius;
• media and data-integrity error count;
• unsafe or unexpected shutdown count;
• power-on hours; and
• percentage used.

NVMe values come from the controller's SMART/Health Information log. The smartmontools implementation maps those counters to structured JSON fields such as temperature.current, power_on_time.hours, percentage_used, unsafe_shutdowns, and media_errors. ATA attribute names and raw values are vendor-specific, so the app recognizes only a conservative set of common names and labels them with a vendor-data caveat. smartctl JSON implementation, NVMe JSON field mapping

Missing data is shown as unavailable, never as zero. A bridge may suppress, cache, translate, or mislabel drive data; percentage used is not the same as percentage remaining and may exceed 100 on an over-endurance NVMe device. These counters are evidence reported through the current drive/bridge path, not an independent health verdict.

The app reads the IOUSB registry plane:

/usr/sbin/ioreg -p IOUSB -l -w0

When the selected product name can be associated with an IOUSBHostDevice, the app reports UsbLinkSpeed as the negotiated link rate. Full raw IOKit output is not placed in the console because it may contain hardware serial identifiers.

The reported link rate is not a benchmark. Cable quality, bridge behavior, queue depth, filesystem overhead, thermals, and the storage medium determine real transfer performance.

After the mount attempt, the app requests error and fault entries emitted by diskarbitrationd during the previous 15 minutes:

/usr/bin/log show \
  --last 15m \
  --style compact \
  --predicate 'process == "diskarbitrationd" AND (messageType == error OR messageType == fault)'

An empty result means no matching retained error or fault entry was returned for that time window. It does not prove that no earlier failure occurred, that every storage event was logged, or that the filesystem is healthy.

Safe Eject Disk targets the whole external physical disk associated with the selected volume:

/usr/sbin/diskutil eject /dev/diskN

The app warns that sibling volumes on the same physical disk are included. It does not use force, and it preserves Resource busy or other failures rather than masking them.

Safe Eject should be used only after closing files and applications that are using every volume on that disk.

The application constructs commands only from fixed absolute executable paths, fixed arguments, and typed disk identifiers returned by macOS.

No user-entered text is interpolated into a shell command. Process receives the executable path and argument array directly.

The console always retains the exact error and exit status. Guided text is added only after matching the observed result.

Command-launch failures, malformed property lists, missing required fields, cancellation, and report-write errors are all surfaced explicitly. A per-disk discovery failure produces a partial-inventory warning rather than discarding successfully decoded volumes from other disks.

Redact shared reports is enabled by default. Copying or saving then redacts:

• the signed-in username within /Users/... paths;
• USB and storage serial-number fields;
• IOKit session identifiers;
• hardware UIDs;
• disk and volume UUID fields; and
• UUID-shaped values elsewhere in the report.

Redaction applies to the copied or saved report. The live console remains diagnostic evidence and may still contain volume names, mount points, device identifiers, filenames emitted by macOS, and log metadata. Review every report before sharing it.

Disabling report redaction is an explicit user choice. Reports are written only to the destination selected in the standard macOS save panel.

The app does not transmit reports, telemetry, disk metadata, or credentials over the network.

./build.sh

The build script automatically runs:

"build/Volume Mount Troubleshooter.app/Contents/MacOS/VolumeMountTroubleshooter" \
  --self-test

The self-test covers:

• strict property-list decoding;
• nested virtual-CD partition discovery;
• unlocker-to-data-disk hardware-path association;
• unlock-transition progression messages and bounded command timeouts;
• disconnected whole-disk and child-volume snapshot removal;
• disk identifier descendant matching without prefix collisions;
• coexistence of usable volumes and exact per-disk scan failures;
• explicit-action availability for unmounted, writable-mounted, locked, and absent selections;
• standardized NVMe and conservative ATA expanded-SMART JSON parsing;
• USB link-speed extraction; and
• privacy redaction of serial numbers and UUIDs.

./script/build_release.sh

This produces two ignored files under dist/:

VolumeMountTroubleshooter-vVERSION-macOS-universal.zip
VolumeMountTroubleshooter-vVERSION-SHA256SUMS.txt

The packaging script rebuilds the app, verifies its universal architecture set and strict ad-hoc signature, creates the ZIP, generates its SHA-256 checksum, extracts the ZIP into a temporary directory, re-verifies the signature and architectures, and runs the self-tests from the extracted bundle.

You can repeat the checksum verification with:

cd dist
shasum -a 256 -c VolumeMountTroubleshooter-v*-SHA256SUMS.txt

Ad-hoc signing detects accidental bundle changes but is not Developer ID signing or Apple notarization.

The macOS CI workflow runs on every branch push, pull request, v* tag push, and manual dispatch. It:

1. builds the universal app on GitHub's Apple Silicon macos-15 runner;
2. runs self-tests and strict signature verification;
3. packages the app and produces a SHA-256 checksum;
4. uploads the ZIP and checksum as immutable workflow artifacts;
5. downloads that exact package on macos-15-intel and repeats checksum, architecture, signature, and native Intel self-test validation; and
6. after a v* tag passes every validation job, creates the GitHub Release with both assets and publishes it atomically.

A v* tag must exactly match CFBundleShortVersionString, such as tag v0.3.0 for app version 0.3.0, or the release workflow fails before packaging. GitHub documents macos-15 as arm64 and macos-15-intel as Intel runner labels, while artifact uploads expose a SHA-256 digest in addition to the project's downloadable checksum file. GitHub-hosted runner reference, workflow artifact validation

"build/Volume Mount Troubleshooter.app/Contents/MacOS/VolumeMountTroubleshooter" \
  --scan-test

This test inventories attached external disks, parses user-facing volumes, and reports overall and expanded SMART, USB, mount, and encryption metadata. It does not mount, unmount, repair, erase, or eject anything.

/usr/bin/plutil -lint Info.plist
/usr/bin/codesign --verify --deep --strict --verbose=2 \
  "build/Volume Mount Troubleshooter.app"

Normal mount, read-only mount, explicit unmount, writable-volume unmount/remount, Safe Eject Disk, and physical hot-plug behavior require deliberate testing with a disposable external test device. Do not validate those state-changing paths against irreplaceable evidence media.

The hardware test matrix defines repeatable cases for unencrypted and encrypted APFS, ExFAT, NTFS, virtual unlockers, multiple disks with an isolated failure, disconnect-during-scan behavior, busy volumes, USB hubs, and verified read-only remounts. Each case records the exact build, macOS version, drive, bridge, connection path, expected result, observed result, and privacy-reviewed evidence.

Matrix rows remain NOT RUN, BLOCKED, FAIL, or HISTORICAL until the behavior is deliberately exercised on disposable hardware. A parser self-test, successful build, or unobserved field is never counted as hardware validation.

VolumeMountTroubleshooter/
├── .github/workflows/macos-ci.yml # Universal build and release validation
├── AppDelegate.swift       # AppKit window, controls, actions, and workflow
├── assets/AppIcon.png      # Canonical project logo source
├── assets/AppIcon.icns     # Multi-resolution macOS application icon
├── Diagnostics.swift       # Typed models, plist decoding, redaction, guidance
├── docs/HARDWARE_TEST_MATRIX.md # Physical-device validation cases and records
├── SystemConnectors.swift  # Process, disk scanner, Disk Arbitration monitor
├── main.swift              # Application entry point and test modes
├── Info.plist              # macOS bundle metadata
├── build.sh                # Build, self-test, signing, and verification
├── script/build_release.sh # Universal ZIP and SHA-256 generation
├── script/build_and_run.sh # Build and launch entrypoint for local debugging
├── script/verify_release.sh # Extracted release and native-slice verification
├── README.md               # Project documentation
├── LICENSE                 # MIT software license
└── .gitignore              # Excludes generated build output

Generated applications under build/ and release files under dist/ are intentionally not tracked by Git.

• The app is ad-hoc signed, not Developer ID signed, notarized, or distributed as a DMG or installer package.
• Only external physical storage published by diskutil is considered. Internal disks, disk images, network shares, and cloud-storage providers are outside scope.
• System Profiler may omit a connected USB device even when diskutil and IOKit report it.
• SMART is frequently unavailable through USB bridges; expanded counters also require an existing compatible smartctl collector.
• USB link speed is not storage throughput.
• Locked encrypted volumes must be unlocked outside the app.
• The app does not identify or install third-party filesystem drivers.
• The app does not repair filesystems or evaluate whether repair is safe.
• Unified Log results depend on retention, privacy redaction, and the selected 15-minute window.
• Automatic detection reacts to Disk Arbitration appeared and disappeared events but does not auto-mount.
• Read-only guarantees begin only after the app verifies the requested read-only mount state.

Run the same layers manually:

/usr/sbin/system_profiler SPUSBDataType SPThunderboltDataType -detailLevel mini
/usr/sbin/diskutil list external physical
/usr/sbin/ioreg -r -c IOBlockStorageDevice -l -w0

• If no layer sees the device, check the cable, enclosure, adapter, hub power, and port.
• If System Profiler sees hardware but diskutil does not, macOS has not published a usable external disk.
• If diskutil sees the disk but the selector is empty, the disk may lack a recognized user-facing filesystem or may contain only excluded helper partitions.

Unlock it through Finder or Disk Utility, then press Refresh. Do not send a password or recovery key to this application or include one in a report.

The small read-only unlocker is a virtual CD, not the data filesystem. Use Show Unlocker in Finder if you need to locate it, then deliberately open the vendor utility yourself. Complete the vendor unlock and watch the five-attempt progress indicator until the full-size volume appears. Pressing Refresh restarts the retry budget; the app never launches the utility or submits, reads, or stores its password.

Close Finder windows, Terminal working directories, documents, media applications, backup tools, indexing jobs, and any process using the selected mount point. Retry without force-unmounting.

Treat the operation as unsuccessful. Review the fresh diskutil info -plist result and recent Disk Arbitration errors. Disk identifiers may also have changed during reconnect or device reset.

That result is common through USB bridges and does not establish health. Expanded counters may still be unavailable because the bridge blocks SMART pass-through, smartctl is absent, or the current user cannot access the health interface. The app reports the reason it observed without requesting administrator credentials. Use hardware-appropriate vendor diagnostics or a direct interface when health assessment is required.

The app installs no background service or privileged helper. Quit it and remove the generated bundle:

rm -rf "build/Volume Mount Troubleshooter.app"

Delete the cloned repository separately if the source is no longer needed. Saved reports remain wherever the user chose to write them.

Use Volume Mount Troubleshooter only with storage you own or are authorized to examine. Mounting can expose private data to applications running under the signed-in account. Ejecting a disk affects every sibling volume on that physical device.

For forensic evidence, prefer a validated hardware write blocker and an evidence-handling procedure appropriate to the investigation. A software read-only mount is useful operational protection, but it is not a substitute for hardware-enforced write blocking, acquisition hashes, chain of custody, or verified forensic tooling.

Preserve original error output before attempting repair. Never erase or format a device merely because macOS cannot mount it.

Volume Mount Troubleshooter is an early native macOS utility. The source builds as one universal arm64 + x86_64 app. Parser self-tests, a live read-only scanner test, deterministic ZIP and checksum generation, strict ad-hoc signature verification, and native CI validation on Apple Silicon and Intel runners are available in this repository.

The project has no required third-party runtime dependencies, no telemetry, no network access, and no privileged helper. Expanded SMART collection is an optional integration with an existing smartmontools installation and is not bundled by the current build.

Volume Mount Troubleshooter is released under the MIT License. Anyone may freely use, copy, modify, merge, publish, distribute, sublicense, or sell copies of the software, including for commercial purposes, provided the copyright and license notice remain with copies or substantial portions. The software is provided without warranty.
